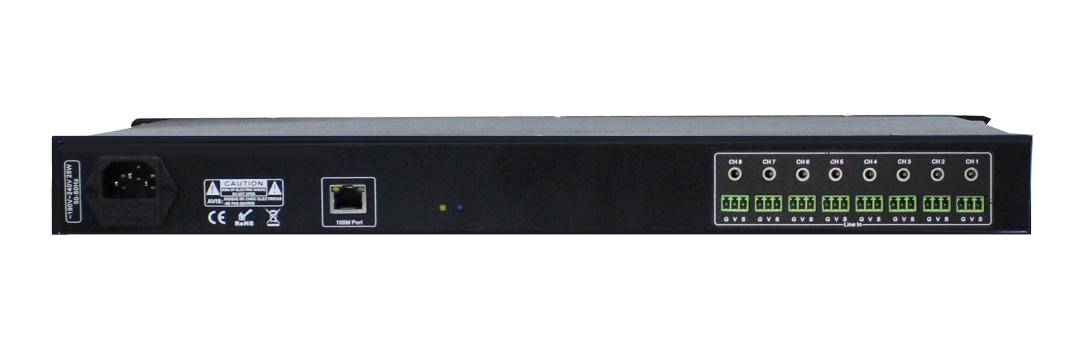

8-way analog network recorder HD-C-1002

Number of recording channels: 8 analog signals connected simultaneously
Analog Audio: Input Interface: 3-core terminal (audio, common ground, power positive) ; audio input impedance: 1000Ω
Recording parameters:
Sampling: 16K, bitrate: 32kbps-64kbp
Sampling: 32K, code rate, 64kbps-128kbp;
Sampling: 48K, code rate, 64kbps-128kbps
Storage format: MP3 and WAV are supported
Recording mode: support full-time recording, timing recording, event recording three recording methods
Playback and display mode:
Support 40-way audio online monitoring, support 40-way audio waveform online monitoring, support any one of 40-way audio playback
Noise Alarm: support 0-100 decibels audio noise alarm function, can be higher than the set value of the equipment decibels automatic alarm, and linkage monitoring center
Maximum capacity: support 24T hard disk access storage
Audio Noise Reduction: Third Gear Noise Reduction Adjustable: low, middle, high
Enclosure protection level: the enclosure protection of the sample shall meet the requirements of grade IP20 in GB/T 4208-2008
Functional interface:
Input: 8-way analog audio input; output: 8-way analog audio output
1 RJ4510M/100M network port, 1 USB download port
Host operating system: Windows 7/Windows 2003/Windows 2008
Maximum pickup current: 100mA
Power consumption: AC220V, < 80W; 1 power button Working Environment: Temperature -40 °Cー75 °C Case Size: 430 * 332 * 45 mm 1U case
