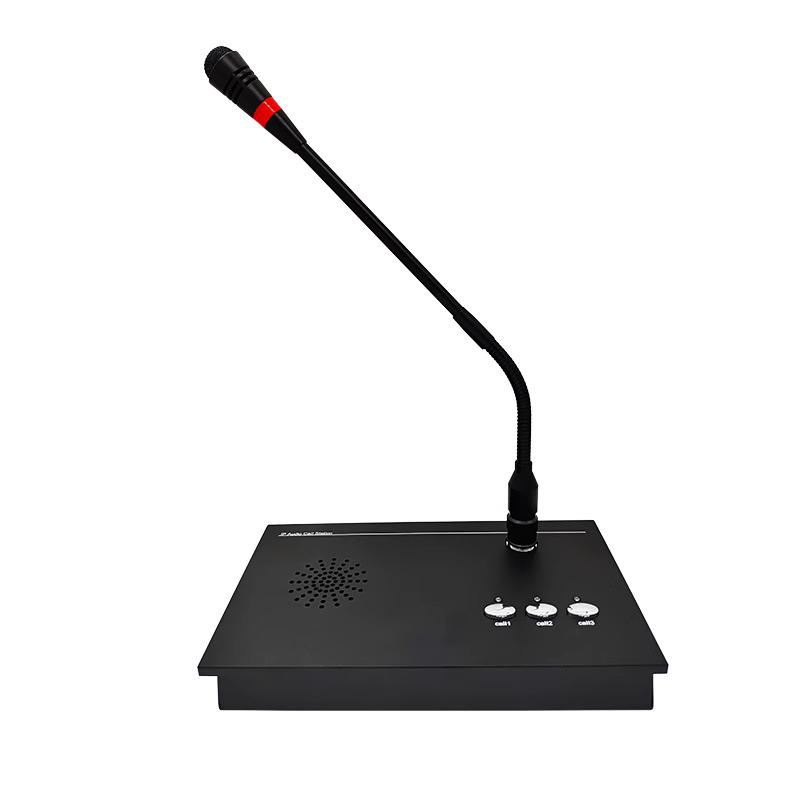

Desktop SIP network intercom terminal Sip-608z

Three buttons
Product information
Full offline: support standard SIP protocol, can completely do not need computer software support, after registration directly and SIP two-way call to the
speaker or broadcast voice.
Intercom function: you can call a designated SIP phone host by pressing a key, or you can call a SIP-608Z terminal by any phone host in the SIP system. Full-
duplex intercom with echo cancellation.
Multicast function: can accept from SIP Phone RTP multicast data playback, can through the SIP608Z speaker or line output.
Broadcast: Support Our Private Broadcast Protocol, through our broadcast software for broadcast call, timing ring and other operations.
Easy to expand: fully compatible with intercom broadcast terminals, as well as compatible with other intercom terminals in the standard SIP system, you can
freely choose to build a complex SIP intercom system.
Technical specifications
Network interface: 10/100Base-TX adaptive network, RJ45 interface, send and receive data instructions
Network protocols: TCP, UDP, RTP, ARP, ICMP, DHCP, DNS, IGMP, etc.
MIC input: Built-in high performance microphone, frequency domain 70-12. K5HZ; typical amplitude 50mVpp, SNR 68DB
Audio output: built-in Waterproof 3W speaker
Intercom mode: support quiet mode and noisy mode, button answer and automatic answer, field hang-up and remote hang-up, etc.
Input voltage: DC 9 ~ 24V
Power consumption: static < 300MW Operating Temperature: -40 °C -85 °C Dimensions: 210 × 120 × 50mm (excluding nipples) Panel: aluminum alloy wire-drawn housing Weight: 0.6 kg (with nipple)
