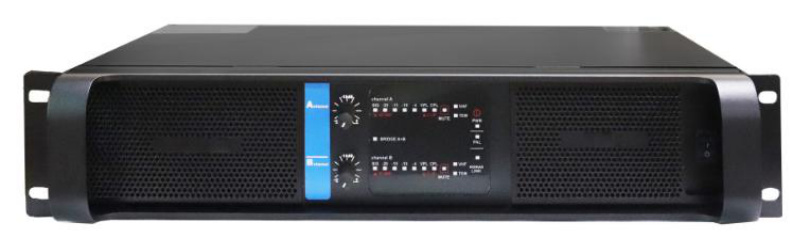

digital amplifier A-05

Model: A-05 Power Amplifier
1. Output Power (8Ω): 2×700W
2. Output Power (4Ω): 2×900W
3. Bridge 8Ω (Output Power): 1500W
4. Input Sensitivity: 0.775V / 1.2V
5. Input Impedance: 20KΩ (balanced, parallel)
6. Frequency Response: 20Hz-34KHz (0.3dB)
7. Slew Rate: ≥30V/μs
8. Damping Factor: >400:1 (@1KHz)
9. Signal Crosstalk: >90dB (@1KHz)
10. Signal-to-Noise Ratio: >112dB
11. Total Harmonic Distortion: <0.1% 1KHz 12. Intermodulation Distortion: <0.1% 8Ω 1KHz @1W 13. Power Supply: 220V / 50Hz-60Hz 14. Dimensions: 483×88×240 mm, Gross Weight: 8KG Features: Balanced level adjustment, front panel potentiometer, from negative infinity to 0dB. Cooling: stepless variable speed fan, airflow from front right to back. The amplifier uses a 3.2-inch color screen to display volume and level.
