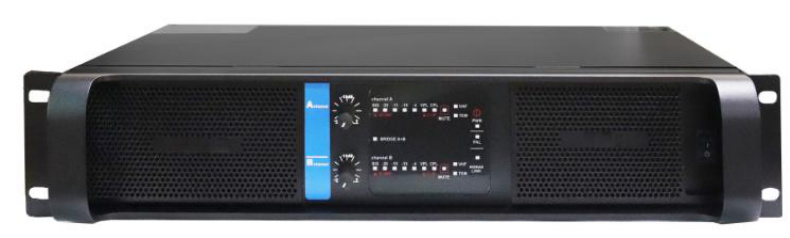

digital amplifier A-06

Model: A-06 Power Amplifier
1. Output Power (8Ω): 2×900W
2. Output Power (4Ω): 2×1200W
3. Bridge 8Ω (Output Power): 2000W
4. Input Sensitivity: 0.775V / 1.2V
5. Input Impedance: 20KΩ (balanced, parallel)
6. Frequency Response: 20Hz-34kHz (0.3dB)
7. Slew Rate: ≥30V/μs
8. Damping Factor: >400:1 (@1kHz)
9. Crosstalk: >90dB (@1kHz)
10. Signal-to-Noise Ratio: >112dB
11. Total Harmonic Distortion: <0.1% @1kHz 12. Intermodulation Distortion: <0.1% 8Ω 1kHz @1W 13. Power Supply: 220V/50Hz-60Hz 14. Dimensions: 483×88×240mm Features: Balanced level adjustment, front panel potentiometer from negative infinity to 0dB, cooling via stepless fan with airflow from front right to rear. The amplifier uses a 3.2-inch color screen to indicate volume and levels. Amplifier Protection: Short circuit, open circuit, DC voltage, overheating, RF, and ultra-low frequency protection.
