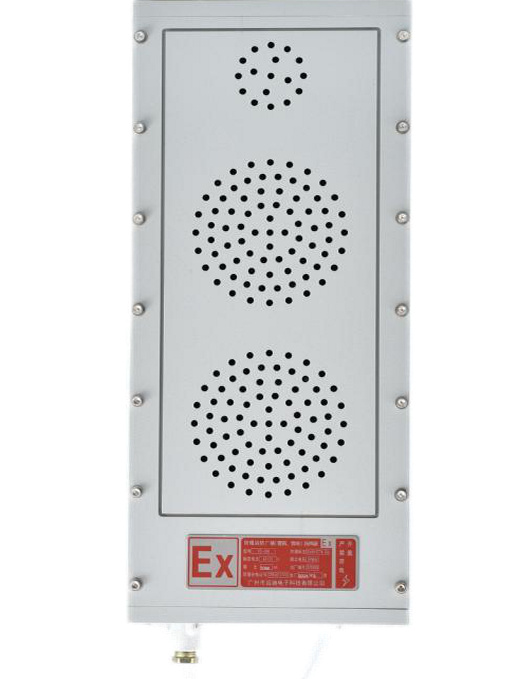

Explosion-proof horn speaker column model YD-650-01AC120V

Category:
Description

Explosion-proof structure parameters comply with GB/T 3836.1-2021 and GB/T 3836.2-2021. Dustproof level 6, waterproof level 5. Constant voltage type, 100V input. Enclosure protection rating IP65, rated impedance 8 ohms, maximum sound pressure level 130dB, effective frequency range 300-5000Hz. Interface size: 4 points = M20 = 20mm, DN15 = thread pitch 15. Operating temperature: -60 to 80°C. Explosion-proof certificate and test report included. Dimensions: height x width x depth = 545 x 245 x 148mm, 70W, two 6-inch speakers with 100 magnetic 25 cores, one tweeter with 70 magnetic 25 core, weight 12kg.
1 pieces
70W
