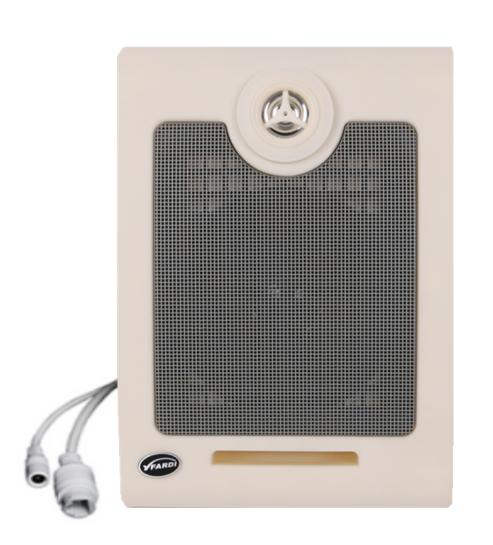

SIP network wall mounted speaker Sip-1 - Image 1
Click to enlarge

SIP network wall mounted speaker Sip-1

Category:
Description

· compatible with SIP (RFC3261)
protocol, and can access the
mainstream IP PBX/IMS platforms
· Full-band wall-mounted speaker
Technical parameters:
1. Network protocols: TCP, UDP, ARP, ICMP, IGMP
Network Chip Speed: 10/100Mbps
3. Audio Code: MP2/MP3/PCM/ADPCM
4. Audio sampling, bitrate: 8KHz ~ 44.1 khz, 16-bit, 8Kbps ~ 320kbps
5. Snr, frequency response: ≥90dB, 20Hz-20KHz
Network voice delay: broadcast delay ≤100ms
7. Built-in power amplifier: 30W)
8. Power consumption: DC12V, ≤20W
9. Working temperature, humidity: -10 °C ~ 50 °C, ≤80% Rh
10. Access Power Rating: 15W 11. Speaker unit: 6.5′′ + 0.5′′12. Dimensions: 197x105x275(mm)13. Weight: 1.2 kg
